ROSS Controls
SKU: Serpar Series
SERPAR 35 Series safety exhaust double valve, 1/2″–2″ NPT, ANSI B11.1 / CSA Z142 / EN13736 compliant, service kits available from Ditton Engineering.
Interested in this product?
We don't sell online — contact us for pricing, availability and lead times. Our team responds promptly to all enquiries.
Send an Inquiry WhatsApp UsProduct Description

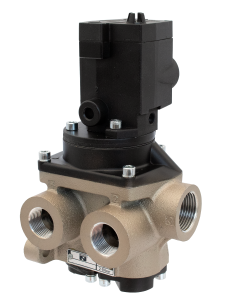

SERPAR 35 Series Safety Exhaust Double Valve
The ROSS Controls SERPAR 35 Series is a safety exhaust double valve system for press clutch/brake control. Dual redundant poppet design with cross-monitoring ensures safe operation to international press safety standards.
Key specifications
| Specification | Detail |
|---|---|
| Port sizes | 1/2" to 2" NPT |
| Pressure range | 15–150 psig (1.0–10.3 bar) |
| Actuation | Dual solenoid (24VDC / 110-120VAC) + E-P, L-G or D-S monitor |
| Construction | Poppet, dual redundant |
| Basic sizes available | 8, 12, 30 |
| Monitor types | E-P (electro-pneumatic), L-G (pneumatic), D-S |
| Flow media | Filtered compressed air (5 micron recommended) |
| Standards compliance | ANSI B11.1, CSA Z142, NR12, EN13736 |
Applications
Mechanical press clutch/brake control, press brake control, safety circuits requiring control-reliable redundant valve function. Ditton Engineering is an authorised ROSS Controls distributor and service centre — service kits available.
Variants
- 3573A5161 — SERPAR 35 Series with E-P monitor, 3/4" NPT, basic size 8, dual solenoid
- J3573C5258 — CROSSFLOW / engineered-to-order variant, 3/4" NPT (contact Ditton for spec)
- J3573A4735 — Engineered-to-order variant, 1/2" NPT (contact Ditton for spec)
- J3573C4640 — Engineered-to-order variant, 3/4" NPT (contact Ditton for spec)
J-prefix variants are non-catalogued engineered-to-order ROSS/FLEX configurations. Contact Ditton Engineering with your existing valve model number for exact specification and pricing.
