Pneumatic Valves
SKU: W6076B3401
ROSS Controls W60 Series ISO 5599-1 directional control valve, W6076B3401, size 1, single solenoid spring return 24VDC, 5/2 function, stainless spool.
Interested in this product?
We don't sell online — contact us for pricing, availability and lead times. Our team responds promptly to all enquiries.
Send an Inquiry WhatsApp UsProduct Description

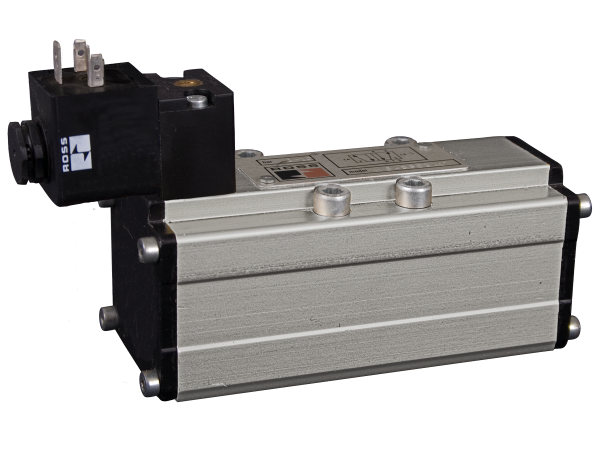

W60 Series ISO 5599-1 Directional Control Valve
ISO 5599-1 compliant spool and sleeve directional control valve for manifold mounting. Stainless steel spool, interchangeable with ISO 5599-1 manifold systems.
Key specifications
| Specification | Detail |
|---|---|
| Part number | W6076B3401 |
| Standard | ISO 5599-1 compliant |
| Size | ISO Size 1 (equivalent 3/8" ported) |
| Function | 5/2 |
| Pressure range | Vacuum to 150 psig (10 bar) |
| Actuation | Single solenoid, spring return (24VDC) |
| Construction | Spool and sleeve, stainless steel spool, aluminium body |
| Seals | Buna-N |
| Pilot | Internal/external (field convertible) |
| Manual override | Flush, standard |
| Temperature (media) | 40–175°F |
