Pneumatic Valves
SKU: 2153B5001
ROSS Controls Classic 27 Series poppet valve, 2153B5001, 3/4″ NPT, air pilot operated, 4/2 function.
Interested in this product?
We don't sell online — contact us for pricing, availability and lead times. Our team responds promptly to all enquiries.
Send an Inquiry WhatsApp UsProduct Description

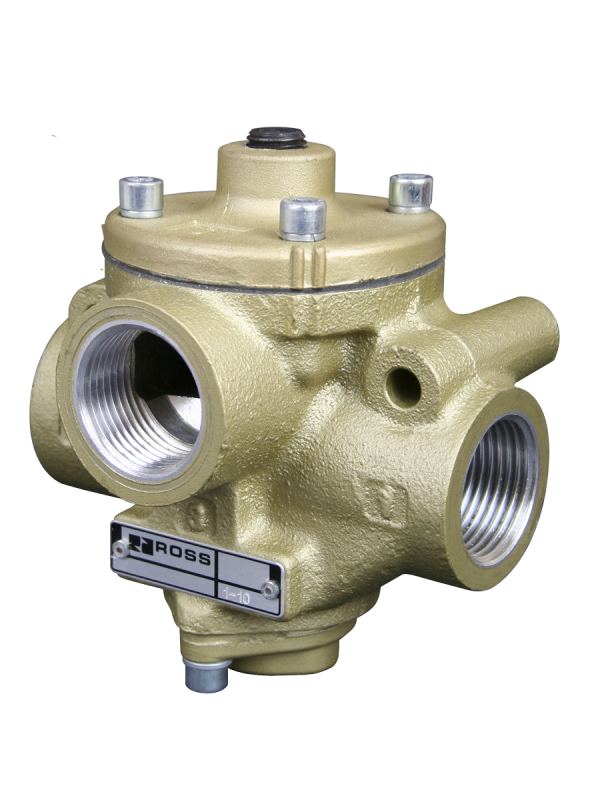

Classic 27 Series Inline Poppet Valve — Air Pilot Operated
Key specifications
| Specification | Detail |
|---|---|
| Part number | 2153B5001 |
| Port size | 3/4" NPT |
| Pressure range | 15–150 psig (1.0–10.3 bar) |
| Function | 3/2 |
| Actuation | Air pilot operated |
| Pilot pressure | Must be >= inlet pressure |
| Construction | Poppet, stainless steel stems, aluminium body |
| Manual override | Flush buttons standard |
| Temperature | 0° to 300°F (-17° to 150°C) ambient and media |
